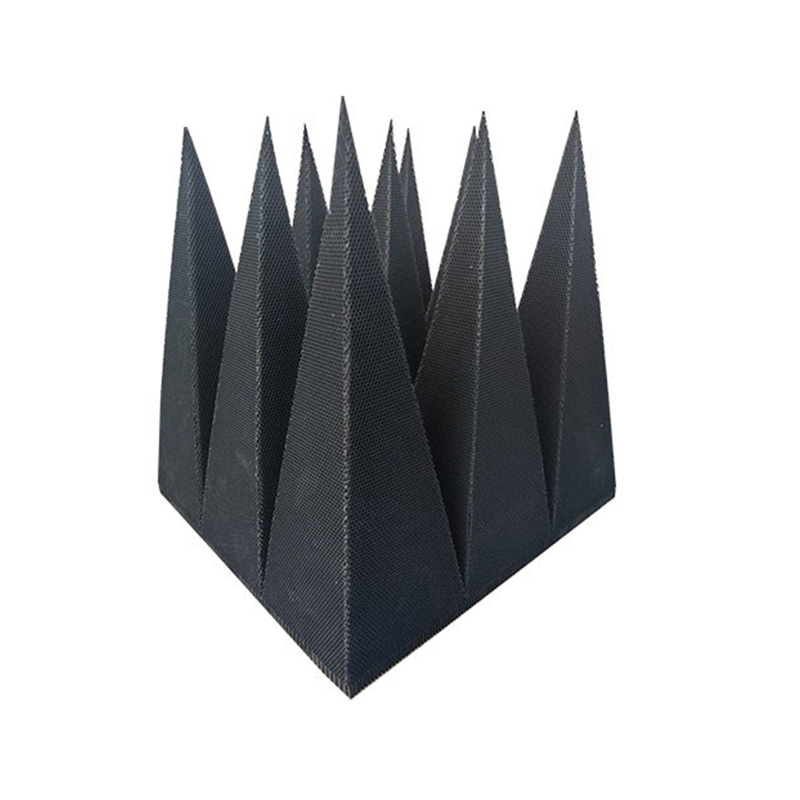

Honeycomb absorbing material

Honeycomb wave-absorbing material is a functional composite material constructed with a honeycomb structure serving as the skeletal framework, integrated with wave-absorbing media or coatings. It uniquely combines the attributes of lightweight design, high structural strength, and highly efficient wave absorption. The core design philosophy centers on achieving electromagnetic wave attenuation through the synergistic interplay between structure and function: the honeycomb skeleton—typically composed of materials such as aluminum, aramid, or carbon fiber—forms a regular array of hollow hexagonal or rectangular cells, thereby providing multiple internal reflection pathways for electromagnetic waves. Meanwhile, the wave-absorbing materials filling the honeycomb cells (e.g., carbonyl iron powder, carbon nanotubes, ferrites, etc.) or the wave-absorbing coatings applied to the surface convert electromagnetic energy into thermal energy through dielectric and magnetic losses. Concurrently, the hollow architecture of the honeycomb structure facilitates a gradient variation in impedance, thereby minimizing electromagnetic wave reflection at the material's surface and significantly enhancing absorption efficiency.

Key advantages of this material include: high specific strength—the inherent mechanical properties of the honeycomb structure allow it to maintain excellent compressive and shear strength while remaining remarkably lightweight (typically with a density of 0.1–0.5 g/cm³); broadband absorption—by adjusting the honeycomb cell dimensions (apertures ranging from 5 to 50 mm), as well as the type and thickness of the wave-absorbing media, effective absorption across the 1–40 GHz frequency band can be achieved; and multifunctional integration—beyond wave absorption, the material can be endowed with additional properties such as thermal insulation, acoustic damping, and flame retardancy (for instance, through the incorporation of flame retardants into aramid-based honeycomb absorbers). Furthermore, its modular structure facilitates easy cutting and installation, making it highly adaptable for application on complex curved surfaces or across large-area layouts.

Exhibiting excellent absorption characteristics for surface waves, this material is primarily utilized in applications involving electromagnetic shielding and compatibility, defense and aerospace systems, wireless communication optimization, and high-power testing environments within industrial and transportation sectors. It operates effectively across a frequency range of 0.6 GHz to 40 GHz (and continues to demonstrate strong performance at frequencies exceeding 40 GHz).

Honeycomb Wave-Absorbing Material: Characteristics and Parameters

Physical Properties

● Type B Aramid Paper Honeycomb; Density: 60 kg/m³; Core Cell Side Length: 2.5 mm

● The periodic cavities within the honeycomb structure effectively impede the propagation of surface waves.

Absorption Performance

● High Absorption Rate: Reflection Loss ≤ -15 dB (within the specified frequency band)

● Excellent broadband absorption efficiency

Flame Retardancy

● Excellent flame-retardant properties

● Oxygen Index ≥ 32% (GB/T 2406-2009)

● Classified as Flame Retardant Grade B1 (GB/T 8624-2012)

Environmental Compliance

● The material is free of heavy metals and halogens, and complies with EU RoHS 2.0 environmental requirements.
